PDC (Polycrystalline Diamond Compact) drill bits use fixed synthetic diamond cutters that shear through rock continuously, with no moving parts. They excel in soft to medium-hard, homogeneous formations like clay, shale, sandstone, and limestone, where they can achieve 2-4 times the penetration rate of tricone bits. When selecting a PDC bit, match the design to your formation: use fewer blades with aggressive cutter angles for soft formations, and more blades with durable cutters for harder or abrasive ground. While PDC bits have a higher upfront cost, they typically deliver lower cost-per-foot in suitable formations due to faster drilling and fewer bit changes. Avoid PDC bits in extremely hard rock, heterogeneous ground with chert or boulders, or highly fractured formations - these conditions can crack or chip the brittle diamond cutters. For directional drilling applications, PDC bits are often preferred because their one-piece design is easier to steer. The key is matching the bit to the geology: PDC for maximum efficiency in compatible formations, and switching to tricone when conditions warrant.

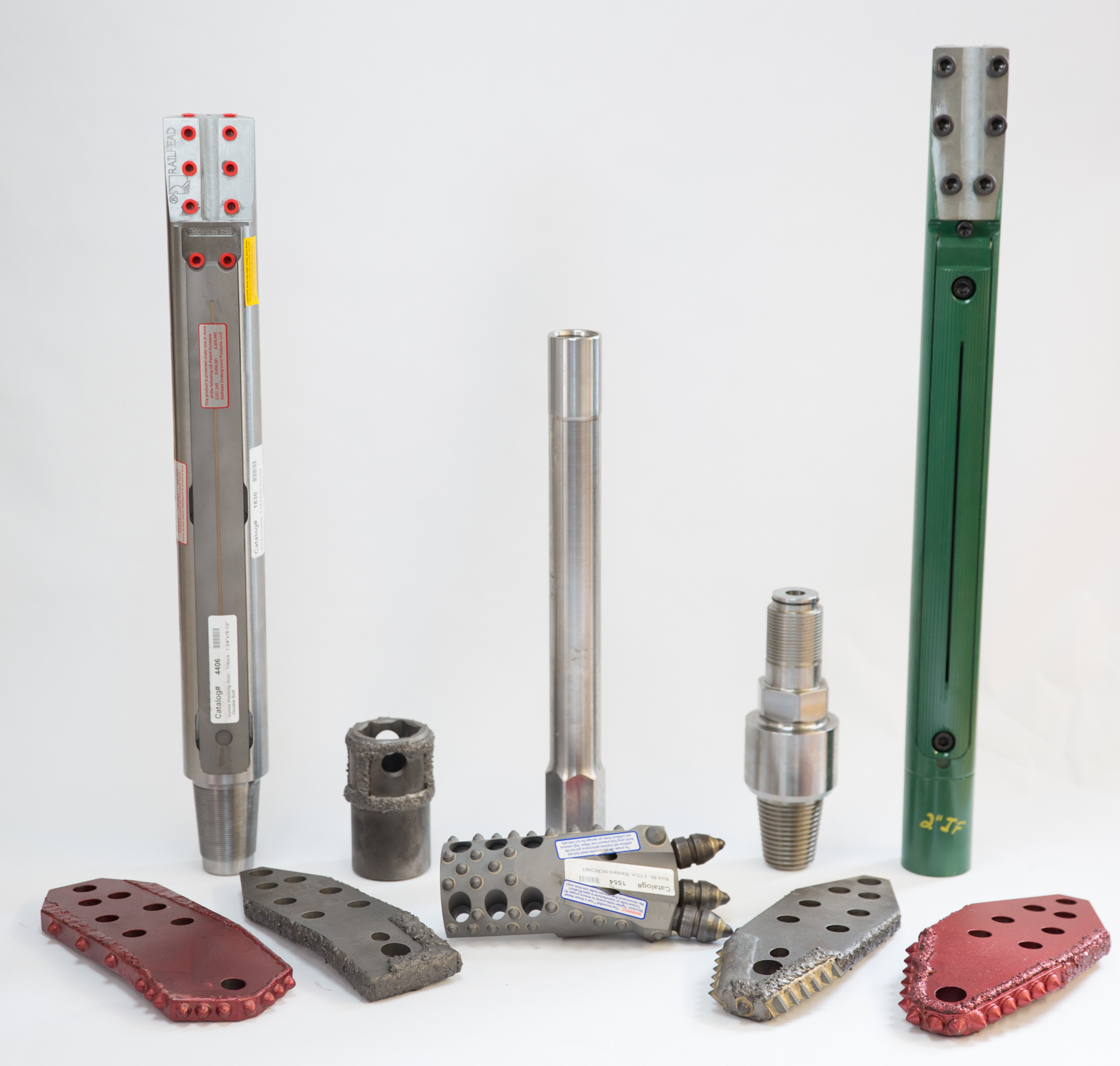

A complete HDD toolkit includes: (1) Drilling Rig - sized appropriately for bore length and pipe diameter, providing thrust, rotation, and power; (2) Drill Pipe - hollow steel rods that transmit rotation and drilling fluid, with enough length for your bore plus extra; (3) Drill Head and Bits - steerable heads with slanted faces for directional control, with bit selection based on soil conditions (blade bits for soft soils, tricone or PDC for rock); (4) Mud Mixing System - tanks, pumps, and mixing equipment for preparing bentonite or polymer drilling fluid; (5) High-pressure Mud Pump - delivers fluid through the drill string for cooling, cuttings removal, and hole stabilization; (6) Tracking System - battery-powered transmitter (sonde) in the drill head with surface receiver for real-time position monitoring; (7) Reamers and Hole Openers - paddle reamers for soft soils, fly-cutters for clays, barrel reamers for sands, with sizes increasing 1.5-2x per pass; (8) Swivels - allow rotation without twisting the product pipe during pullback; (9) Pipe Rollers and Pull Equipment - support the product pipe and reduce friction during installation; (10) Support Equipment - generators, water supply, vacuum trucks for mud management, welding equipment for steel pipe, and containment tubs at the exit point for drilling fluid returns. Proper planning with all tools on hand ensures smooth operations from pilot hole through final pullback.

Drilling fluid selection depends primarily on soil type: In sand, gravel, or porous soils, use bentonite-based mud - it forms a filter cake that retains fluid and prevents collapse. Choose high-yield bentonite mixed to medium viscosity (typically 30-60 kg per 1000 liters of water). In reactive clay or shale formations that swell and stick, add polymer additives like PHPA (partially hydrolyzed polyacrylamide) to encapsulate clay particles and reduce sticking and torque. For solid rock, bentonite mud with moderate viscosity works well for cooling and cuttings removal. For mixing: start with good water quality (pH 8-9, low hardness under 100 ppm), add bentonite slowly using a high-energy mixer, allow 10-20 minutes hydration time, then add polymers last to prevent bentonite from clumping. Always add dry polymers after bentonite is fully hydrated. Check mud properties with a Marsh funnel (aim for 45+ seconds for typical HDD mix) and pH meter. Be prepared to adjust the mix along the bore path as conditions change. Drilling fluid typically accounts for less than 5% of job cost but has an outsized impact on success - don’t skimp on proper mud mixing and monitoring.

Tricone bits use three rolling cones with steel milled teeth or tungsten carbide inserts that crush and grind rock through a rotating, chipping action. They’re versatile across soft, medium, and hard formations, handle variable geology well, and cost less per unit. However, they have moving parts (bearings, seals) that wear out, and teeth can become blunt in extensive drilling. PDC bits use fixed diamond cutters that shear rock continuously - no moving parts means longer life in the right conditions. In soft to medium formations (clay, shale, sandstone up to medium hardness), PDC bits cut 2-3x faster than tricones and can drill thousands of feet without replacement. For water well applications: choose PDC for deeper wells in consistent, softer formations where speed and fewer bit trips reduce costs; choose tricone for mixed overburden with clay/gravel lenses, unknown geology, or formations with cobbles and boulders that could damage PDC cutters. Tricones fail gradually (you’ll notice declining ROP as teeth wear), giving warning to pull and replace. PDC cutters are brittle and can crack on sudden impact, potentially failing quickly in wrong conditions. Many drillers keep both types on hand, starting with one and switching based on actual formation encountered.

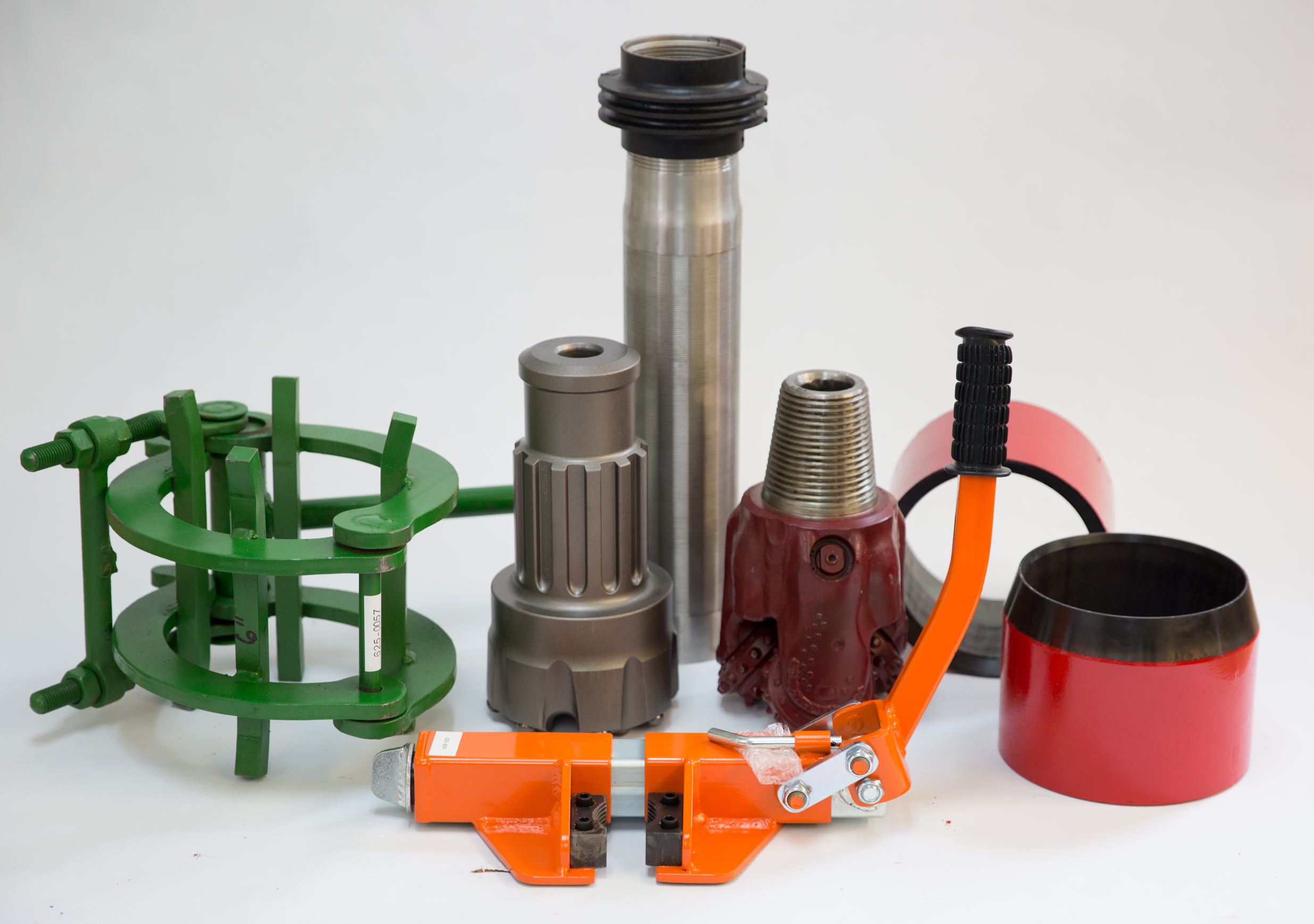

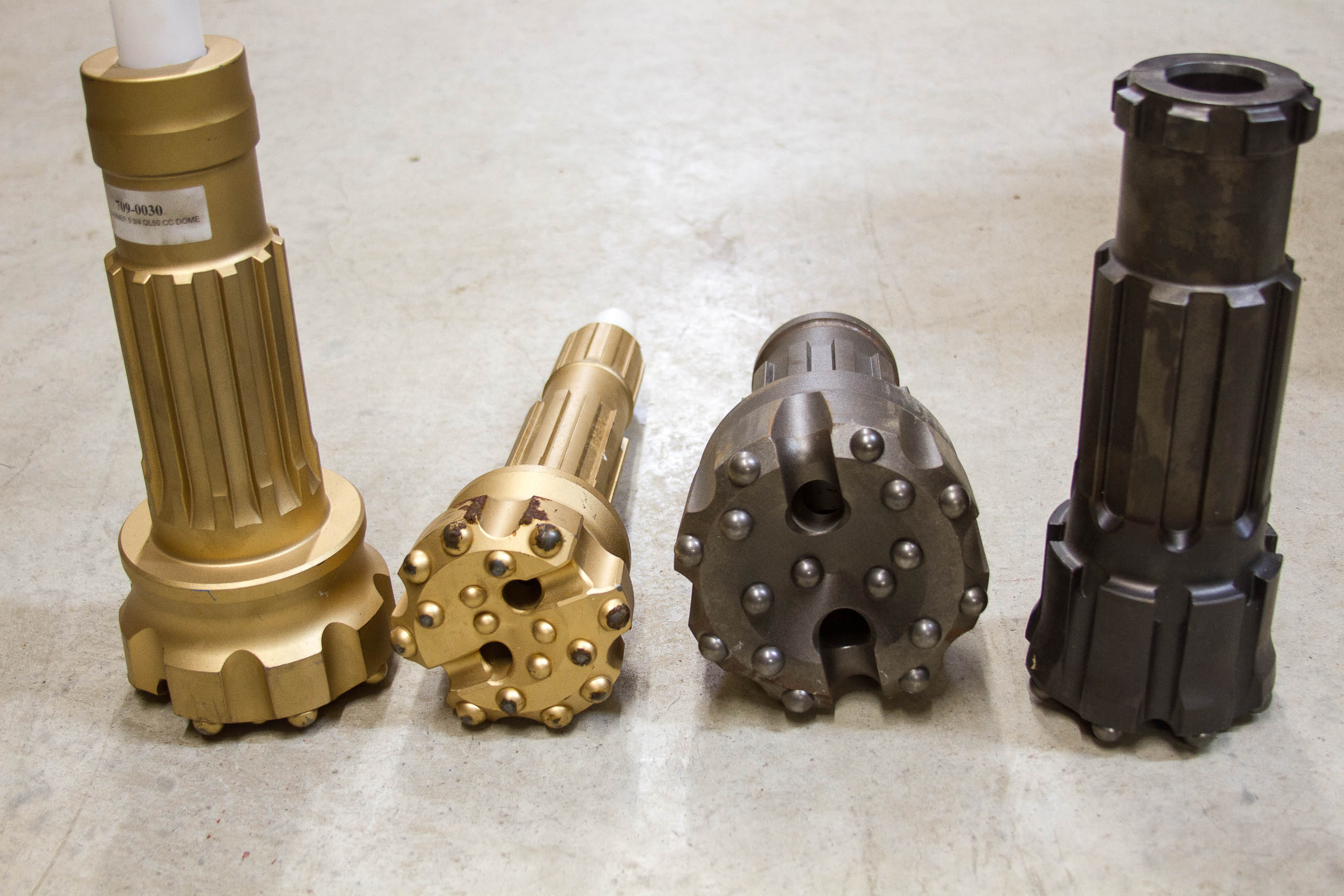

Complete water well equipment includes: Drilling Rig - rotary (mud or air) sized for target depth and diameter; Drill Bits - tricone for versatility, PDC or drag bits for soft soils, DTH hammer with carbide bit for hard rock; Drill Rods - sufficient length for target depth plus spares, with thread protectors and fresh thread compound; Circulation System - mud pump and mixing tank for mud rotary, or high-capacity air compressor (e.g., 900 cfm/350 psi) for air drilling; Drilling Fluid/Additives - bentonite, polymers, and lost-circulation materials; Casing - steel or PVC sized for the well (4-6" for residential, 8-16" for municipal), with couplings and drive shoes; Well Screen - slotted section (e.g., 0.020" slots for sand aquifers) matching casing diameter for water-producing zones; Gravel Pack - clean, properly-sized filter sand for unconsolidated formations; Grouting Equipment - cement or bentonite grout with tremie pipe and pump for sealing the annulus; Development Tools - surge block, airlift setup, or bailer for cleaning and developing the well; Centralizers - keep casing centered for even grouting; Test Pump - for yield testing; and Well Head Components - sanitary seal, pitless adapter (cold climates), drop pipe. Also maintain safety equipment, hand tools, spare parts, and fishing tools for recovering dropped equipment.

Monitor these key indicators: Decreased Rate of Penetration (ROP) - if drilling slows significantly with constant parameters, the bit is dulling; Increased Torque/Drag - worn bits require more force, showing as climbing torque gauges or harder-to-turn drill strings; Changes in Cuttings - metal flakes in returns indicate rapid wear, while powdery cuttings (instead of chips) suggest inefficient crushing; Vibration/Noise - unusual chattering, bouncing, or rattling signals uneven wear or broken elements; Visual Inspection - check for worn/rounded teeth on tricones, chipped or polished PDC cutters, missing carbide inserts, wobbly cones (bearing wear), or worn gauge pads. For tricones, track operating hours against known bearing life limits for your formation (e.g., 30 hours in abrasive rock). PDC bits in suitable formations may drill thousands of feet, but inspect cutters regularly for damage. Replace proactively when you see substantial wear rather than waiting for catastrophic failure - a stuck or broken bit is far more costly than a timely bit change. Keep records of footage and parameters for each bit to establish baseline performance and recognize decline early.

Industry guidelines recommend final bore diameter of 1.2-1.5 times the product pipe diameter, with specific clearances based on size: For small utilities (fiber optic conduits 1-4"): bore 6-8" final diameter, providing at least 2" annular clearance for mud flow and easy pullback. For medium pipes (6-12" gas/water lines): bore approximately 1.5x pipe diameter - a 6" HDPE gas line goes in a 9-10" bore, an 8" water main in a 12" bore. For large diameter pipes (12"+): use either product diameter + 12" or 1.5x diameter, whichever is smaller - a 24" casing needs approximately 36" bore, but extremely large holes become difficult to maintain, so don’t oversize unnecessarily. Plan reaming passes in 1.5-2x increments per stage (e.g., 8" pilot to 12" to 18" to 24" final for a 16" product). The pilot bit is small for steering accuracy; subsequent reamers enlarge progressively. Adequate clearance ensures drilling fluid can circulate around the product during pullback, carrying cuttings and reducing friction. Always verify requirements against project engineering specifications and local codes, and account for product stiffness - rigid pipes like PVC need more clearance than flexible HDPE.

Follow a structured maintenance program: Daily - check fluid levels (engine oil, hydraulic oil, coolant, compressor oil), inspect hoses and connections for leaks, verify gauges and safety shutdowns, grease all fittings (rotary head bearings, carriage slides, pivot points), inspect drill rods for thread damage or cracks, and examine bits for wear. Weekly - tighten loose bolts (vibration loosens mounts), inspect mast/derrick for cracked welds, check wire ropes and chain tension, drain water traps in compressors and fuel tanks. Monthly/Per Manufacturer Schedule - change engine oil and filters (typically every 250 hours), hydraulic filters and oil (every 500 hours), fuel filters, check gearbox oil levels, calibrate instrumentation. For Storage - clean all equipment thoroughly, apply rust inhibitor and oil to threads, install thread protectors on drill pipe, store on racks off ground, fill fuel tanks with stabilizer for long-term storage, drain water from pumps, lubricate exposed cylinder rods, and store electronics in climate-controlled environments with batteries removed. Keep maintenance logs with dates and hour-meter readings, stock common spare parts (belts, hoses, filters, o-rings), and train crew to recognize unusual sounds, leaks, or vibrations as early warning signs. Preventive maintenance catches problems before they become costly breakdowns.
